| Abb. - Nr. |
Teile - Nr. |
Beschreibung |
Menge CBXZ |
Gebiets Code |

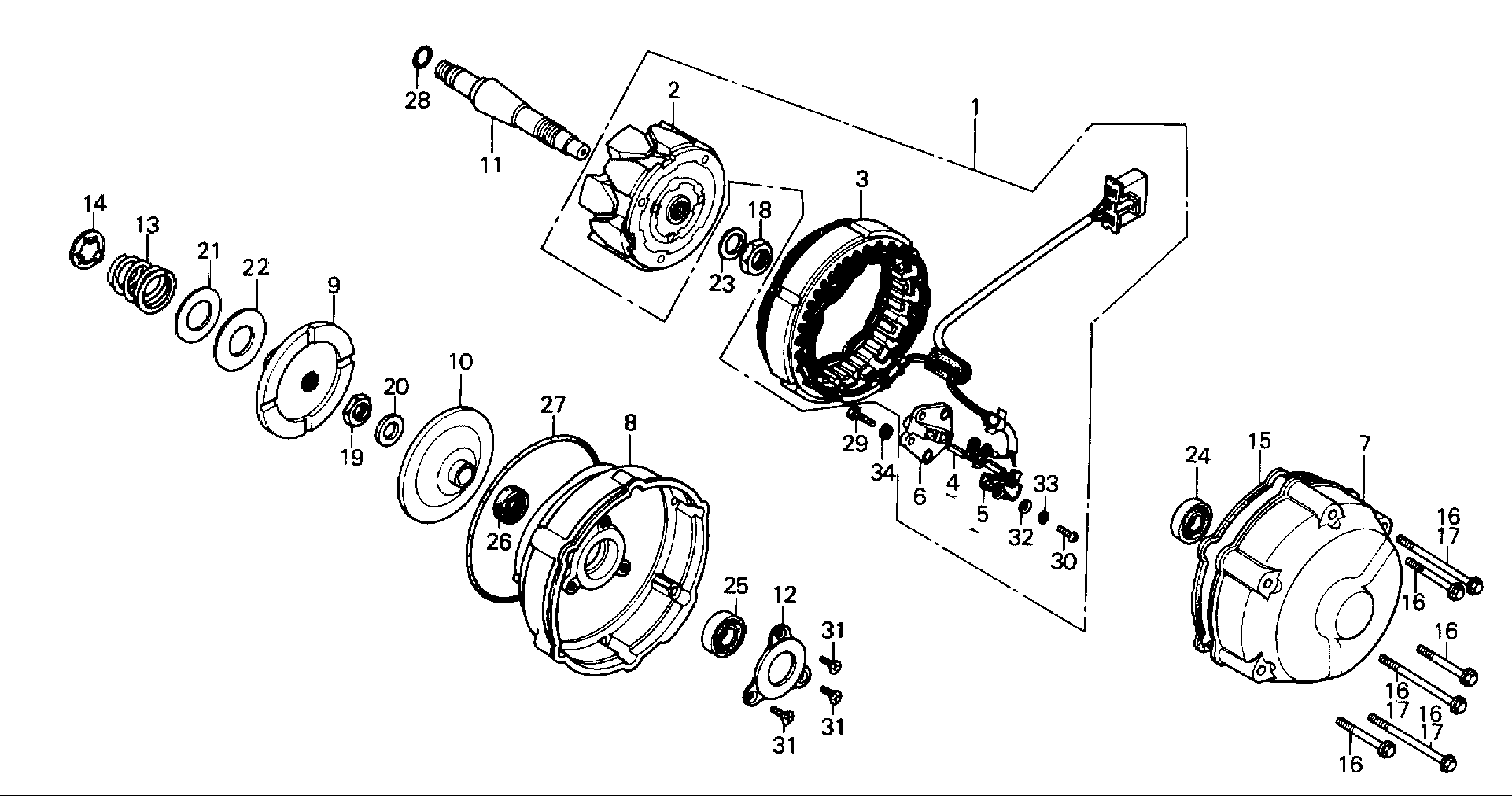

| 1 | 31100-422-005 | A. C. Generator, Komplett (Hitachi) | 1 | CM, DK, DM, SA, U |
| 31100-422-611 | A. C. Generator, Komplett (Hitachi) | 1 | E, ED, F, G | |
| 2 | 31110-422-005 | Rotor, Komplett (Hitachi) | 1 | CM, DK, DM, SA, U |
| 31110-422-611 | Rotor, Komplett (Hitachi) | 1 | E, ED, F, G | |
| 3 | 31120-422-005 | Stator, Komplett (Hitachi) | 1 | CM, DK, DM, SA, U |
| 31120-422-611 | Stator, Komplett (Hitachi) | 1 | E, ED, F, G | |
| 4 | 31124-422-005 | Bürste, Komplett A | 1 | |
| 5 | 31125-422-005 | Bürste, Komplett B | 1 | |
| 6 | 31126-422-005 | Basis, Buchse | 1 | CM, DK, DM, SA, U |
| 31126-422-611 | Basis, Buchse | 1 | E, ED, F, G | |
| 7 | 31131-422-000 | Deckel A, A. C. Lichtmaschine | 1 | CM, DK, DM, SA, U |
| 31131-422-610 | Deckel A, A. C. Lichtmaschine | 1 | E, ED, F, G | |
| 8 | 31132-422-000 | Deckel B, A. C. Lichtmaschine | 1 | CM, DK, DM, SA, U |
| 31132-422-610 | Deckel B, A. C. Lichtmaschine | 1 | E, ED, F, G | |
| 9 | 31133-422-000 | Verbindungsplatte A, A. C. Lichtmaschine | 1 | |
| 10 | 31134-422-000 | Verbindungsplatte B, A. C. Lichtmaschine | 1 | |
| 11 | 31135-422-000 | Welle, A. C. Lichtmaschine | 1 | |
| 12 | 31136-422-000 | Halteplatte, Lager | 1 | |
| 13 | 31138-422-010 | Verbindungsfeder, A. C. Lichtmaschine | 1 | |
| 14 | 31139-422-000 | Verbindungsfedersitz, A. C. Lichtmaschine | 1 | |
| 15 | 31140-422-000 | Dichtung, A. C. Lichtmaschineendeckel | 1 | CM, DK, DM, SA, U |
| 31140-422-610 | Dichtung, A. C. Lichtmaschineendeckel | 1 | E, ED, F, G | |
| 16 | 90006-422-000 | Flanschschraube, 6 x65 | 3 | CM, DK, DM, SA, U |
| 90006-422-000 | Flanschschraube, 6 x65 | 6 | E, ED, F, G | |
| 17 | 90007-422-000 | Flanschschraube, 6 x90 | 3 | CM, DK, DM, SA, U |
| 18 | 90201-611-010 | Mutter, Hex., 16mm | 1 | |
| 19 | 90233-701-010 | Gegenmutter A, 14mm | 1 | |
| 20 | 90427-395-000 | Scheibe, Rotor | 1 | |
| 21 | 90458-703-000 | Druckscheibe, 28mm | 1 | |
| 22 | 90466-422-000 | Spezialplatte | 1 | |
| 23 | 90540-051-000 | Scheibe, v. Gabel | 1 | |
| 24 | 91004-422-003 | Radialkugellager, 6201 (Nachi) | 1 | |
| 91004-422-004 | Radialkugellager, 6201 (Koyo) | 1 | ||
| 25 | 91005-422-004 | Radialkugellager, 6203 | 1 | |
| 26 | 91216-397-005 | Simmerring, 22 x 35 x7 | 1 | |
| 27 | 91302-422-000 | Dichtung, A. C. Lichtmaschineengehäuse | 1 | |
| 28 | 91303-634-000 | O - Ring, 12,5 x 2,2mm | 1 | |
| 29 | 92000-06016 | Schraube, Hex., 6 x 16 | 2 | |
| 30 | 93500-04012-OH | Schraube, Wanne, 4 x 12 | 2 | |
| 31 | 93600-06016 | Flachkopfschraube, 6 x 16 | 3 | |
| 32 | 94101-04800 | Scheibe, 4mm | 2 | |
| 33 | 94111-04800 | Federring, 4mm | 2 | |
| 34 | 94111-06800 | Federring, 6mm | 2 |
