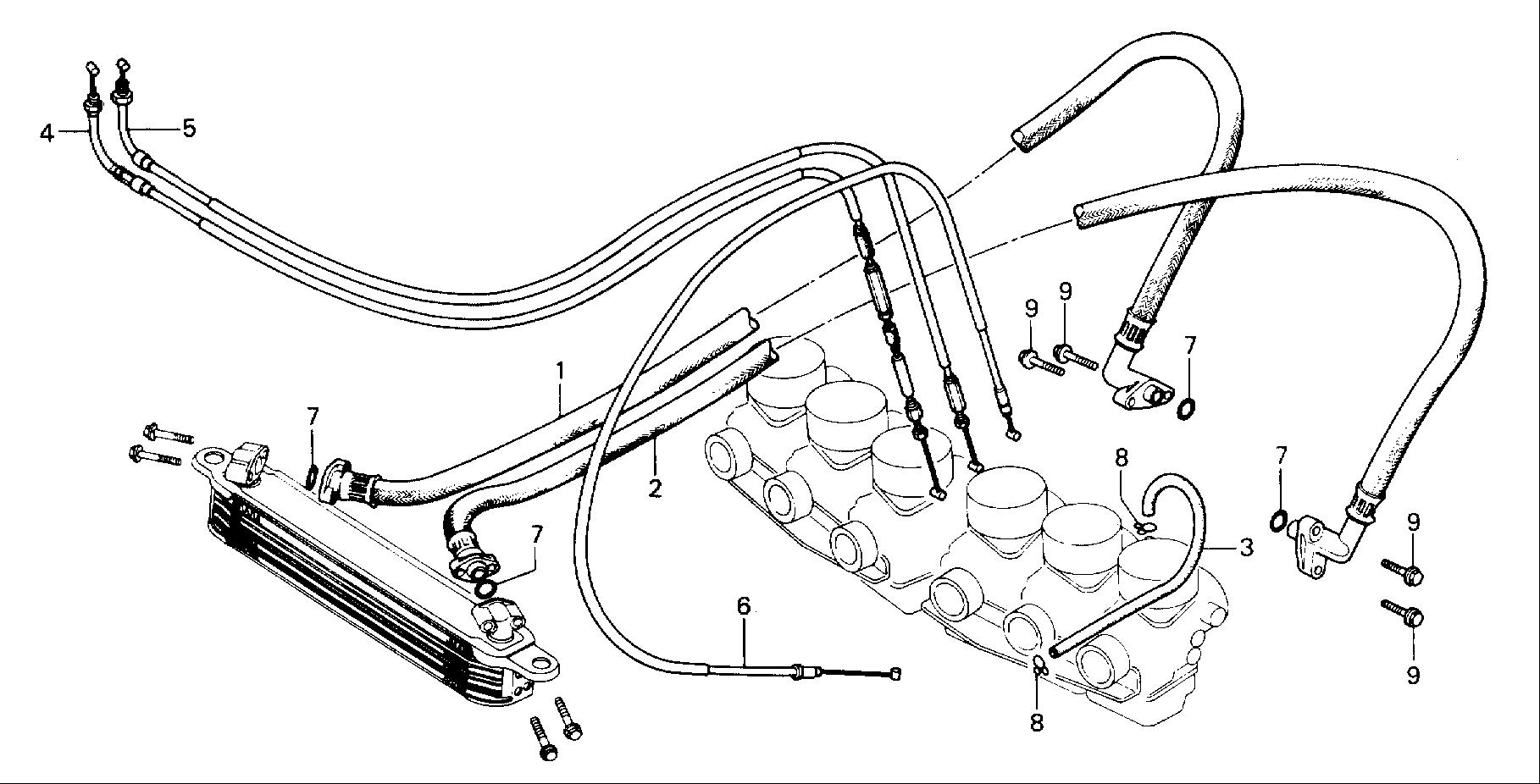

Ref. No. |
Part No. |
Description |
Reqd. No. CBXZ |
Area Code |
| 1 | 15510-422-000 | Hose Comp., R. Oil | 1 | |
| 2 | 15516-422-000 | Hose Comp., L. Oil | 1 | |
| 3 | 16955-422-000 | Tube, Fuel, 6.3 x 140 | 1 | |
| 4 | 17910-422-000 | Cable Comp. A, Throttle | 1 | DK, DM, E, ED, F, G, U |
| 17910-422-670 | Cable Comp. A, Throttle | 1 | CM, SA | |
| 5 | 17920-422-000 | Cable Comp. B, Throttle | 1 | DK, DM, E, ED, F, G, U |
| 17920-422-670 | Cable Comp. B, Throttle | 1 | CM, SA | |
| 6 | 17950-422-010 | Cable Comp., Choke | 1 | DK, DM, E, ED, F, G, U |
| 17950-422-671 | Cable Comp., Choke | 1 | CM, SA | |
| 7 | 91302-028-000 | O - Ring, 15 x 2.5 | 4 | |
| 8 | 95002-70000 | Clip Oil, Tube | 2 | |
| 9 | 95700-06025-00 | Bolt, Flange, 6 x 25 | 4 |
