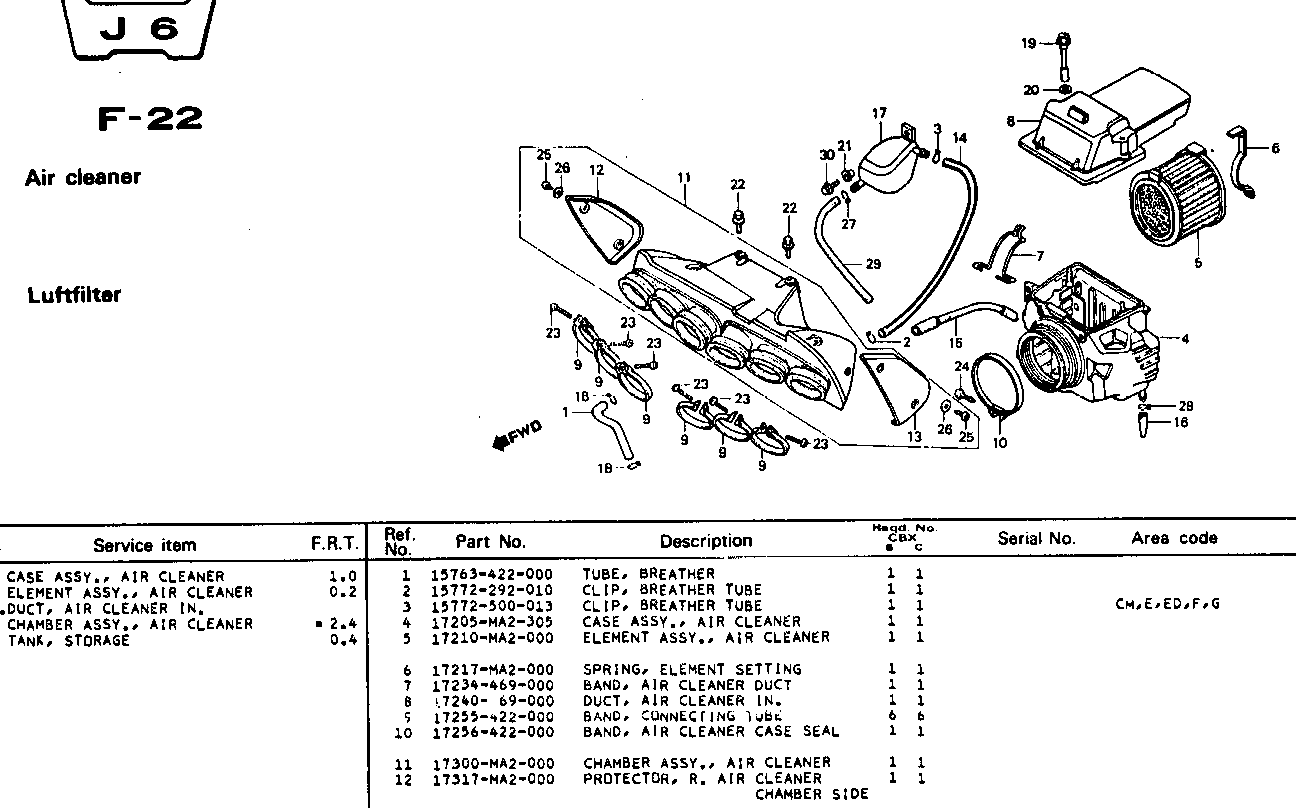

| Abb. - Nr. | Teile - Nr. | Beschreibung | CBX B+C | Areacode |
| 1 | 15763-422-000 | Schlauch, Entlüftung | 1 | |
| 2 | 15772-292-010 | Clip | 1 | |
| 3 | 15772-500-013 | Clip | 1 | CM,ED,E,F,G |
| 4 | 17205-MA2-305 | Luftfilterhaus | 1 | |
| 5 | 17210-MA2-000 | Luftfilterelement | 1 | |
| 6 | 17210-MA2-000 | Feder, Element | 1 | |
| 7 | 17217-MA2-000 | Band, Tunnel | 1 | |
| 8 | 17240-469-000 | Tunnel, Einlass | 1 | |
| 9 | 17255-422-000 | Schelle, Verbindungsschlauch | 6 | |
| 10 | 17256-422-000 | Schelle, Gehäusedichtung | 1 | |
| 11 | 17300-MA2-000 | Kammer, Ansaug | 1 | |
| 12 | 17317-MA2-000 | Protektor R Kammerseite | 1 | |
| 13 | 17318-MA2-000 | Protektor L Kammerseite | 1 | |
| 14 | 17358-MA2-670 | Drainschlauch | 1 | CM,ED,E,F,G |
| 15 | 17358-341-900 | Schlaucheinheit | 1 | DK,DM,SA,U |
| 16 | 17359-MA2-000 | Drainschlauch | 1 | |
| 17 | 17551-MA2-670 | Sammeltank | 1 | CM,ED,E,F,G |
| 18 | 18534-634-670 | Clip, Schlauch, 16 | 2 | |
| 19 | 90126-422-000 | Mutter, Tunnel | 2 | |
| 20 | 90501-310-000 | Scheibe 7x12 | 2 | |
| 21 | 90522-170-700 | Hülse | 1 | |
| 22 | 93481-06035-00 | Schraube-Scheibe 6x35 | 2 | |
| 23 | 93500-04020-0G | Schraube 4x20 | 6 | |
| 24 | 93500-05016 | Schraube 5x16 | 1 | |
| 25 | 93901-34280 | Schraube 4x10 | 4 | |
| 26 | 94101-04700 | Scheibe 4mm | 4 | |
| 27 | 95002-02130 | Clip B12,5 | 1 | |
| 28 | 95002-70000 | Clip C11 | 1 | |
| 29 | 95005-80330-20 | Schlauch 8x330 | 1 | |
| 30 | 95700-06016-07 | Flanschschraube 6x16 | 1 |
