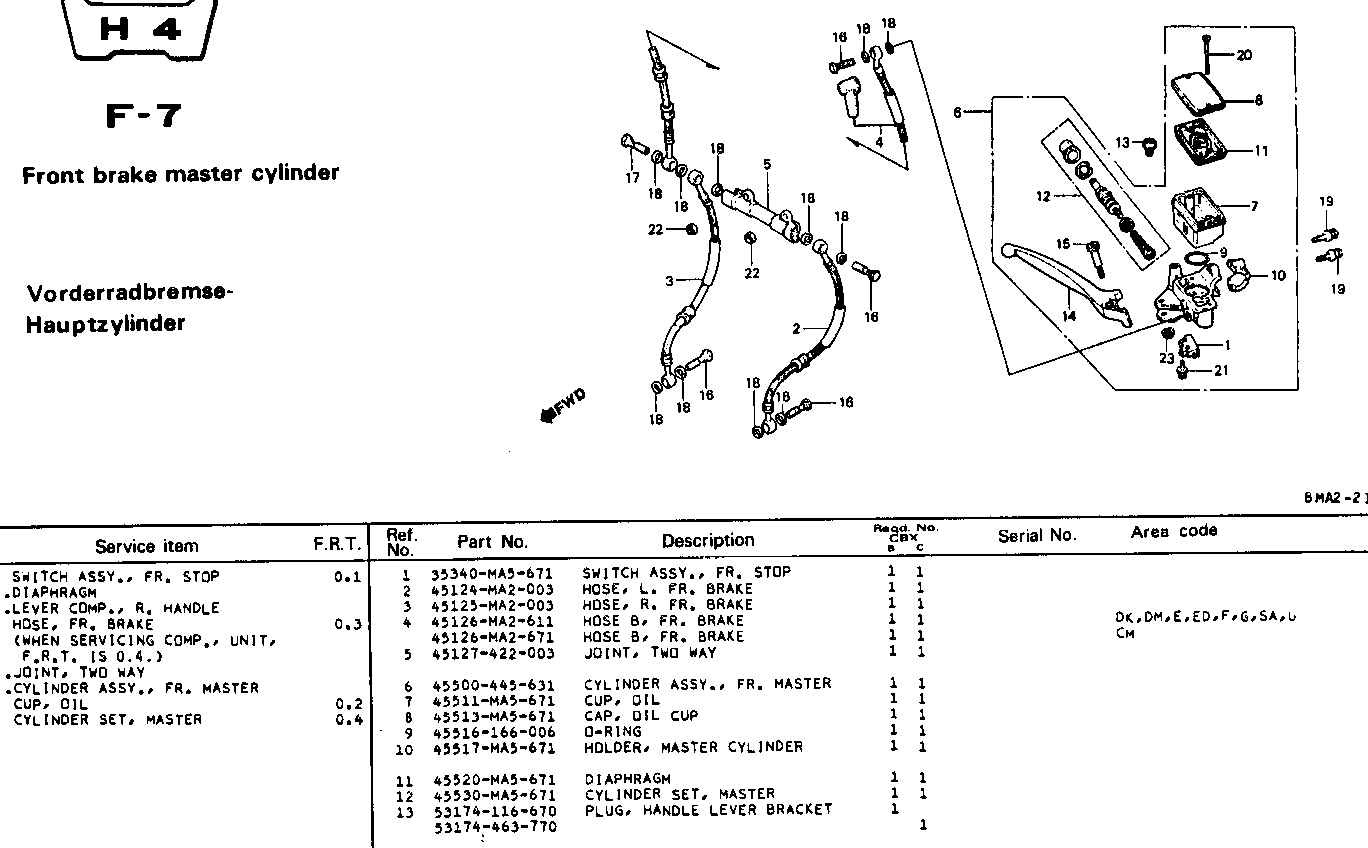

| Abb.
- Nr. |
Teile
- Nr. |
Beschreibung |
CBX B |
CBX C |
Areacode |
| 1 |
35340-MA5-671 |
Schaltereinheit Bremse |
1 |
1 |
|
| 2 |
45124-MA2-003 |
Bremsschlauch L |
1 |
1 |
|
| 3 |
45125-MA2-003 |
Bremsschlauch R |
1 |
1 |
|
| 4 |
45126-MA2-611 |
Schlauch B |
1 |
1 |
DK,DM,E,ED,F,G,SA,U |
| |
45126-MA2-671 |
Schlauch B |
1 |
1 |
CM |
| 5 |
45127-422-003 |
Zweiwegeverbinder |
1 |
1 |
|
| 6 |
45500-445-631 |
Zylinder, Master |
1 |
1 |
|
| 7 |
45511-MA5-671 |
Behälter |
1 |
1 |
|
| 8 |
45513-MA5-671 |
Deckel |
1 |
1 |
|
| 9 |
45516-166-006 |
O-Ring |
1 |
1 |
|
| 10 |
45517-MA5-671 |
Halter Masterzylinder |
1 |
1 |
|
| 11 |
45520-MA5-671 |
Membran |
1 |
1 |
|
| 12 |
45530-MA5-671 |
Zylinderset |
1 |
|
|
| 13 |
53174-116-670 |
Stopfen |
1 |
|
|
| |
53174-463-770 |
Stopfen |
|
1 |
|
| 14 |
53175-MA5-671 |
Bremsgriff |
1 |
1 |
|
| 15 |
90114-MA5-671 |
Achsbolzen, Bremse |
1 |
1 |
|
| 16 |
90145-300-000 |
Schraube Öl |
4 |
4 |
|
| 17 |
90145-422-010 |
Schraube Öl |
1 |
1 |
|
| 18 |
90545-300-000 |
Scheibe |
11 |
11 |
|
| 19 |
93481-06025-07 |
Schraube-Scheibe 6x25 |
2 |
2 |
|
| 20 |
93600-04045-1G |
Schraube 4x45 |
2 |
2 |
|
| 21 |
93893-04012-1B |
Schraube-Scheibe 4x12 |
1 |
1 |
|
| 22 |
94001-06000 |
Mutter 6mm |
2 |
2 |
|
| 23 |
94050-06000 |
Flanschmutter 6mm |
1 |
1 |
|
