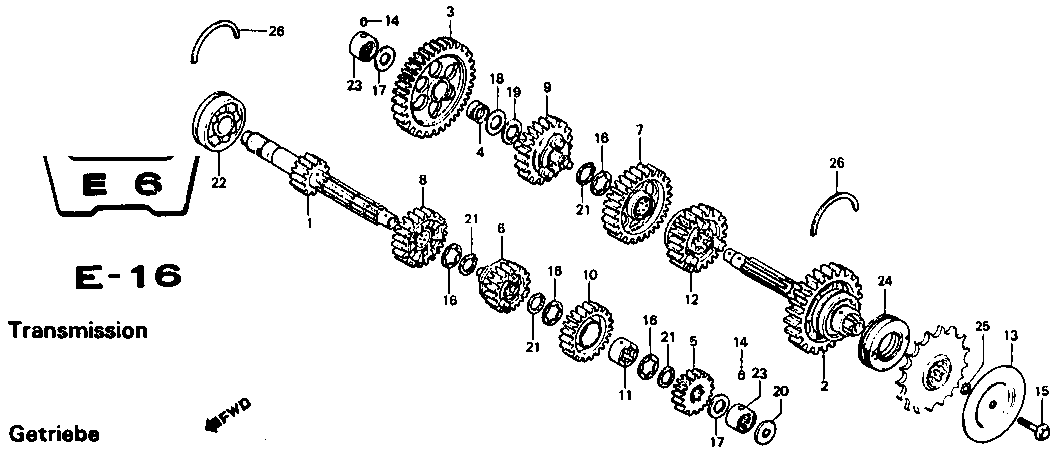

| Abb. - Nr. | Teile - Nr. | Beschreibung | CBX B+C |
| 1 | 23211-422-000 | Hauptwelle 16 Z | 1 |
| 2 | 23220-MA2-000 | Nebenwelle | 1 |
| 3 | 23421-422-000 | Zahnrad Nebenwelle 39 Z NLA | 1 |
| 4 | 23425-422-000 | Hülse 24x17 | 1 |
| 5 | 23431-422-000 | 2. Gang Hauptwelle 20 Z NLA | 1 |
| 6 | 23451-422-010 | 3. Gang Hauptwelle 23 Z NLA | 1 |
| 7 | 23460-422-000 | 3. Gang Nebenwelle 32 Z NLA | 1 |
| 8 | 23470-422-010 | 4. Gang Hauptwelle 25 Z NLA | 1 |
| 9 | 23481-422-000 | 4. Gang Nebenwelle 30 Z | 1 |
| 10 | 23491-422-010 | 5. Gang Hauptwelle 27 Z NLA | 1 |
| 11 | 23495-422-000 | Abstandhülse 28x17 | 1 |
| 12 | 23501-422-000 | 5. Gang Nebenwelle 28 Z NLA | 1 |
| 13 | 23823-469-000 | Platte, Führung | 1 |
| 14 | 24261-283-000 | Stift, Schaltgabelführung | 2 |
| 15 | 90037-422-003 | Spezialschraube 10mm | 1 |
| 16 | 90451-422-000 | Ring 28mm | 4 |
| 17 | 90453-704-000 | Ring 22mm | 2 |
| 18 | 90455-422-000 | Ring 24mm | 1 |
| 19 | 90456-422-000 | Sicherungsring | 1 |
| 20 | 90558-422-000 | Platte | 1 |
| 21 | 90601-422-000 | Clip 28mm | 4 |
| 22 | 91006-422-004 | Radialkugellager 6206 | 1 |
| 23 | 91022-422-004 | Nadellager 22x38x17.5 | 2 |
| 91022-422-008 | Nadellager 22x38x17.5 | 2 | |
| 24 | 91205-425-003 | Öldichtung 40x62x13 NLA | 1 |
| 25 | 91305-422-000 | O-Ring 9.8x2.4 | 1 |
| 26 | 90602-428-000 | Setzring 62mm | 2 |
