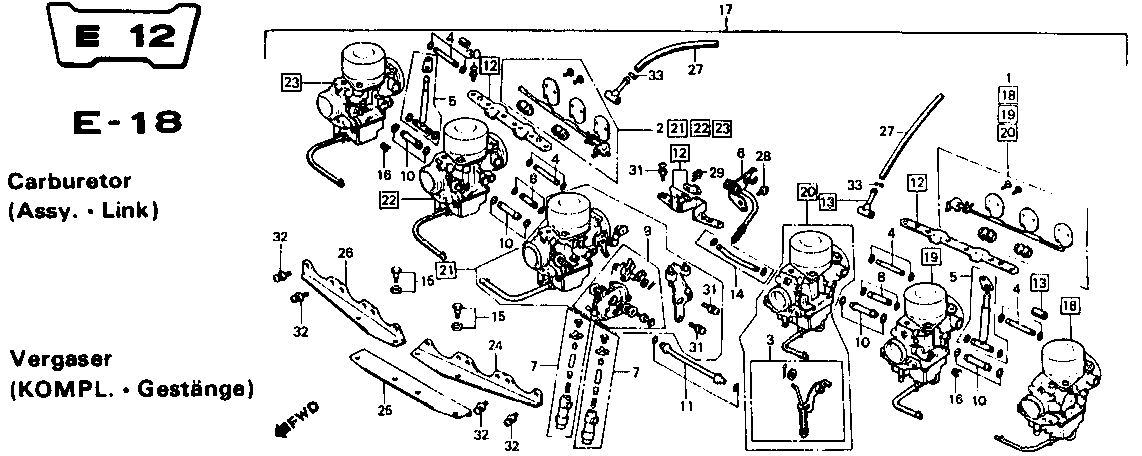

| Abb.
- Nr. |
Teile
- Nr. |
Beschreibung |
CBX B |
CBX C |
Area
Code |
| 1 |
16017-MA2-305 |
Verbinder Set A Choke |
1 |
1 |
|
| 2 |
16018-MA2-305 |
Verbinder Set B Choke |
1 |
1 |
|
| 3 |
16019-MA2-004 |
Stange, Pumpe |
1 |
1 |
|
| 4 |
16026-422-004 |
Verbinder Set A Benzin |
4 |
4 |
|
| 5 |
16027-469-004 |
Verbinder Set A Benzin |
2 |
2 |
|
| 6 |
16028-469-004 |
Schrauben Set B |
1 |
1 |
|
| 7 |
16030-422-004 |
Halter Set |
2 |
2 |
|
| 8 |
16031-469-004 |
Verbinder Set C Benzin |
2 |
2 |
|
| 9 |
16032-MA2-004 |
Verbinder Set Gas |
1 |
1 |
|
| 10 |
16033-422-004 |
Verbinder Set E Benzin |
4 |
4 |
|
| 11 |
16034-422-004 |
Verbinder Set F Benzin |
1 |
1 |
|
| 12 |
16035-422-004 |
Plattenset |
1 |
1 |
|
| 13 |
16036-MA2-004 |
Verbinder Set D Benzin |
2 |
2 |
|
| 14 |
16037-469-004 |
Verbinder Set G Benzin |
1 |
1 |
|
| 15 |
16049-422-004 |
Schrauben Set E |
4 |
4 |
|
| 16 |
16051-413-004 |
Feder |
2 |
2 |
|
| 17 |
16100-MA2-611 |
Vergaser NLA |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16100-MA2-721 |
Vergaser |
1 |
|
CM |
| |
16100-MA2-612 |
Vergaser NLA |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16100-MA2-722 |
Vergaser |
|
1 |
CM |
| 18 |
16101-MA2-405 |
Vergaser 1 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16101-MA2-455 |
Vergaser 1 |
1 |
|
CM |
| |
16101-MA2-415 |
Vergaser 1 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16101-MA2-465 |
Vergaser 1 |
|
1 |
CM |
| 19 |
16102-MA2-405 |
Vergaser 2 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16102-MA2-455 |
Vergaser 2 |
1 |
|
CM |
| |
16102-MA2-415 |
Vergaser 2 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16102-MA2-465 |
Vergaser 2 |
|
1 |
CM |
| 20 |
16103-MA2-405 |
Vergaser 3 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16103-MA2-455 |
Vergaser 3 |
1 |
|
CM |
| |
16103-MA2-415 |
Vergaser 3 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16103-MA2-465 |
Vergaser 3 |
|
1 |
CM |
| 21 |
16104-MA2-405 |
Vergaser 4 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16104-MA2-455 |
Vergaser 4 |
1 |
|
CM |
| |
16104-MA2-415 |
Vergaser 4 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16104-MA2-465 |
Vergaser 4 |
|
1 |
CM |
| 22 |
16105-MA2-405 |
Vergaser 5 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16105-MA2-455 |
Vergaser 5 |
1 |
|
CM |
| |
16105-MA2-415 |
Vergaser 5 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16105-MA2-465 |
Vergaser 5 |
|
1 |
CM |
| 23 |
16106-MA2-405 |
Vergaser 6 |
1 |
|
DK,DM,E,ED,F,G,SA,U |
| |
16106-MA2-455 |
Vergaser 6 |
1 |
|
CM |
| |
16106-MA2-415 |
Vergaser 6 |
|
1 |
DK,DM,E,ED,F,G,SA,U |
| |
16106-MA2-465 |
Vergaser 6 |
|
1 |
CM |
| 24 |
16119-422-004 |
Halteplatte L |
1 |
1 |
|
| 25 |
16120-469-004 |
Halteplatte |
1 |
1 |
|
| 26 |
16121-422-004 |
Halteplatte R |
1 |
1 |
|
| 27 |
16199-422-004 |
Schlauch, Entlüftung |
2 |
2 |
|
| 28 |
93892-04008-00 |
Schraube-Scheibe 4x8 |
1 |
1 |
|
| 29 |
93892-04012-00 |
Schraube-Scheibe 4x12 |
1 |
1 |
|
| 30 |
93892-05012-00 |
Schraube-Scheibe 5x12 |
8 |
8 |
|
| 31 |
93892-05016-00 |
Schraube-Scheibe 5x16 |
4 |
4 |
|
| 32 |
93892-06014-00 |
Schraube-Scheibe 6x14 |
12 |
12 |
|
| 33 |
95002-02080 |
Clip B8, Schlauch |
2 |
2 |
|
