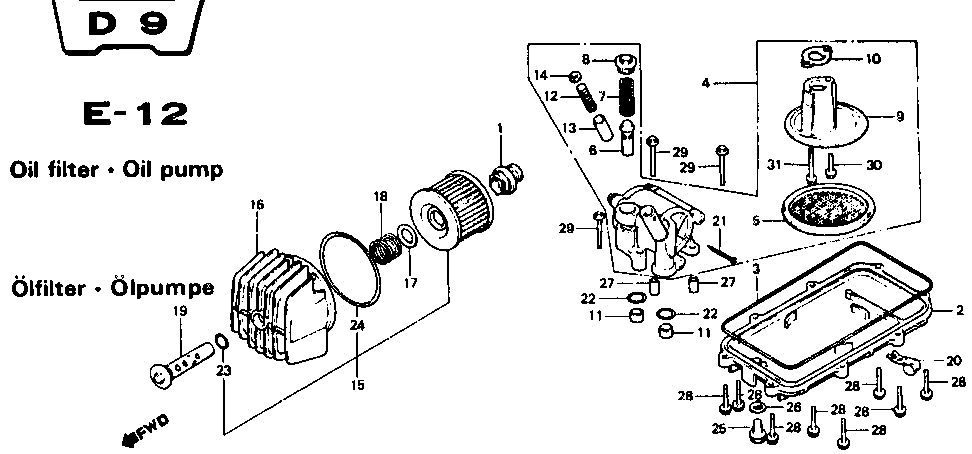

| Abb. - Nr. | Teile - Nr. | Beschreibung | CBX B+C |
| 1 | 11209-422-000 | Adapter | 1 |
| 2 | 11210-MA2-000 | Ölwanne | 1 |
| 3 | 11315-422-000 | Dichtung | 1 |
| 4 | 15100-422-000 | Pumpeneinheit | 1 |
| 5 | 15129-422-000 | Ölsieb NLA | 1 |
| 6 | 15144-422-000 | Ventil | 1 |
| 7 | 15145-300-000 | Feder, Ventil | 1 |
| 8 | 15147-300-000 | Kappe, Ventil | 1 |
| 9 | 15151-422-000 | Ölgehäuse | 1 |
| 10 | 15153-422-000 | Dichtung, Ölgehäuse | 1 |
| 11 | 15155-300-000 | Hülse, O-Ring | 2 |
| 12 | 15165-422-000 | Feder, Ventil | 1 |
| 13 | 15231-413-020 | Ventil | 1 |
| 14 | 15233-413-000 | Sitz, Ventil | 1 |
| 15 | 15410-426-000 | Elementset, Ölfilter | 1 |
| 16 | 15411-MA2-000 | Deckel, Ölfilter | 1 |
| 17 | 15414-300-000 | Federsitz, Ölfilter | 1 |
| 18 | 15415-300-000 | Feder | 1 |
| 19 | 15420-300-020 | Zentralschraube | 1 |
| 20 | 16236-469-000 | Klammer, Überlauf | 1 |
| 21 | 90701-422-003 | Splint 3.0x25 | 1 |
| 22 | 91302-028-000 | O-Ring 15x2.5 | 2 |
| 23 | 91302-377-000 | O-Ring 15x2.5 | 1 |
| 24 | 91316-300-003 | O-Ring 89x4.5 | 1 |
| 91316-300-005 | O-Ring 89x4.5 | 1 | |
| 25 | 92800-12000 | Bolzen, Ablassschraube, 12mm | 1 |
| 26 | 94109-12000 | Scheibe, Ablassschraube, 12mm | 1 |
| 27 | 94301-08140 | Hülse A 8x14 | 2 |
| 28 | 95700-06025-08 | Flanschschraube 6x25 | 8 |
| 29 | 95700-06032-08 | Flanschschraube 6x32 | 3 |
| 30 | 96000-06018-00 | Flanschschraube 6x18 | 1 |
| 31 | 96000-06035-00 | Flanschschraube 6x35 | 1 |
