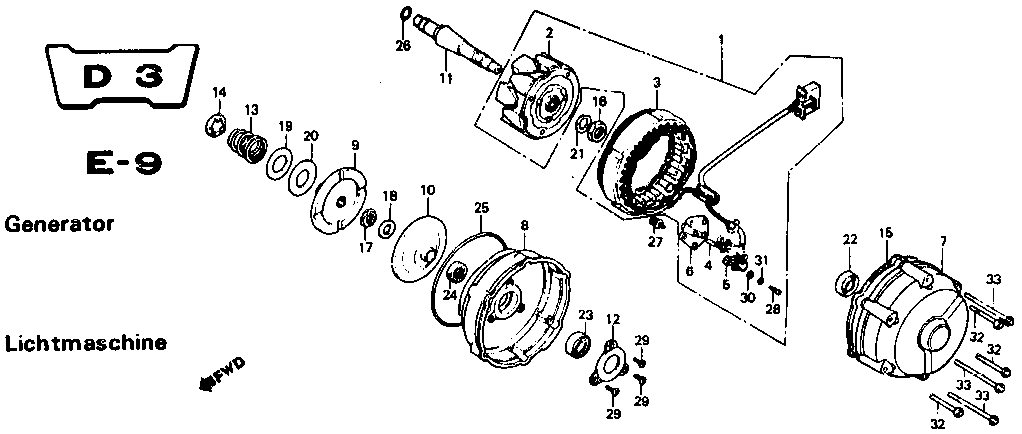

| Abb.
- Nr. |
Teile
- Nr. |
Beschreibung |
CBX B+C |
| 1 |
31100-MA2-005 |
Generatoreinheit |
1 |
| 2 |
31110-422-005 |
Rotor Hitachi |
1 |
| 3 |
31120-MA2-005 |
Stator Hitachi |
1 |
| 4 |
31124-MA2-005 |
Generatorkohle A |
1 |
| 5 |
31125-MA2-005 |
Generatorkohle B |
1 |
| 6 |
31126-422-015 |
Kohlenhalter |
1 |
| 7 |
31127-MA2-000 |
Gehäuse A |
1 |
| 8 |
31132-MA2-000 |
Gehäuse B |
1 |
| 9 |
31133-422-000 |
Kupplungsscheibe A |
1 |
| 10 |
31134-422-000 |
Kupplungsscheibe B |
1 |
| 11 |
31135-422-000 |
Generatorwelle |
1 |
| 12 |
31136-422-000 |
Lagerplatte |
1 |
| 13 |
31138-422-010 |
Feder |
1 |
| 14 |
31139-422-000 |
Lagersitz |
1 |
| 15 |
31140-422-010 |
Dichtung |
1 |
| 16 |
90201-611-010 |
Mutter 16mm |
1 |
| 17 |
90233-701-010 |
Stopmutter A 14mm |
1 |
| 18 |
90427-395-000 |
Scheibe |
1 |
| 19 |
90458-469-000 |
Federsitz |
1 |
| 20 |
90466-422-000 |
Scheibe, spezial NLA |
1 |
| 21 |
90540-051-000 |
Scheibe |
1 |
| 22 |
91004-422-003 |
Kugellager 6201 Nachi |
1 |
| |
91004-422-004 |
Kugellager 6201 KOYO |
1 |
| 23 |
91005-422-014 |
Kugellager 6203 |
1 |
| 24 |
91216-397-005 |
Simmerring 22x35x7 |
1 |
| 25 |
91302-422-000 |
Dichtring |
1 |
| 26 |
91303-634-000 |
O-Ring 12.5x2.2mm |
1 |
| 27 |
93493-06016-00 |
Hülse 6x16 |
2 |
| |
93492-06016-00 |
Hülse 6x16 |
2 |
| 28 |
93500-04012-0H |
Schraube 4x12 |
2 |
| 29 |
93600-06016 |
Schraube, flach, 6x16 |
3 |
| 30 |
94101-04800 |
Scheibe 4mm |
2 |
| 31 |
94111-04800 |
Federscheibe 4mm |
2 |
| 32 |
96000-06065-02 |
Flanschschraube 6x65 |
3 |
| 33 |
96000-06090-02 |
Flanschschraube 6x90 |
3 |
