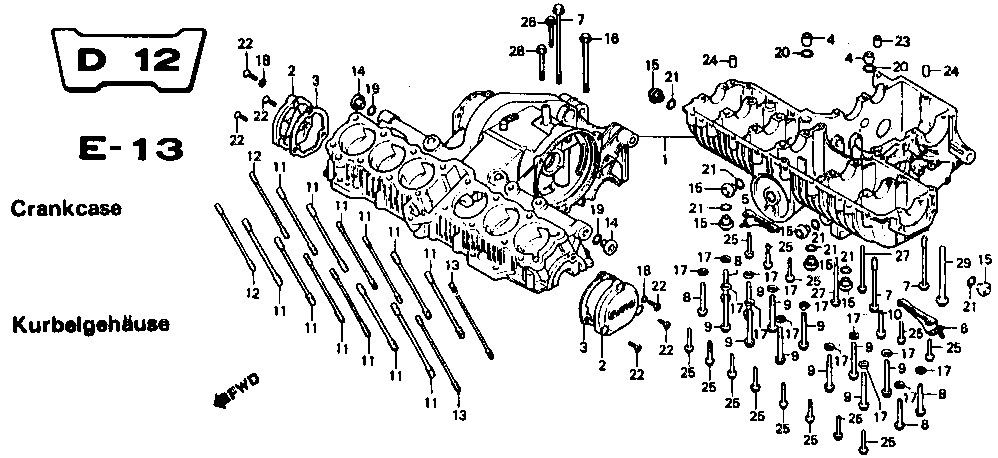

| Abb. - Nr. | Teile - Nr. | Beschreibung | CBX B+C |
| 1 | 11000-MA2-000 | Kurbelgehäuse Set | 1 |
| 2 | 11631-422-000 | Deckel, Kurbelhaus | 2 |
| 3 | 11636-422-003 | Dichtung | 2 |
| 4 | 15326-300-000 | Hülse, Ölweg, 18mm | 2 |
| 5 | 64262-MA2-000 | Halter Beinschild R | 1 |
| 6 | 64272-MA2-000 | Halter Beinschild R | 1 |
| 7 | 90003-302-000 | Schraube 8x135 NLA | 3 |
| 8 | 90003-422-000 | Schraube UBS, 8x70 | 4 |
| 9 | 90004-422-000 | Schraube UBS, 8x100 | 10 |
| 10 | 90017-333-000 | Flanschschraube 8x60 | 1 |
| 11 | 90031-422-003 | Bolzen A, Dehnung, 10x220 | 12 |
| 12 | 90034-422-003 | Bolzen A, Dehnung, 8x217 | 2 |
| 13 | 15231-413-020 | Bolzen C, Dehnung, 18x222 | 2 |
| 14 | 90040-MA2-000 | Deckel, Ölweg | 2 |
| 15 | 90043-422-000 | Dichtkappe 18mm | 8 |
| 16 | 90052-422-000 | Flanschschraube 8x105 | 1 |
| 17 | 90457-422-000 | Scheibe, 8.5mm | 14 |
| 18 | 91301-216-000 | O-Ring 5.5x1.5 | 2 |
| 19 | 91302-704-000 | O-Ring 20mm | 2 |
| 20 | 91311-044-000 | O-Ring 18x3 NLA | 2 |
| 21 | 91333-422-003 | O-Ring 17.8x2.4 | 8 |
| 22 | 93700-06025-02 | Schraube 6x25 | 6 |
| 23 | 94301-10160 | Hülse A 10x16 | 1 |
| 24 | 94303-10160 | Hülse C 10x16 | 2 |
| 25 | 95700-06035-00 | Flanschschraube 6x35 | 13 |
| 26 | 95700-06065-00 | Flanschschraube 6x65 | 1 |
| 27 | 95700-06125-00 | Flanschschraube 6x125 | 2 |
| 28 | 95700-08070-00 | Flanschschraube 8x70 | 1 |
| 29 | 95700-10140-00 | Flanschschraube 10x140 | 1 |
