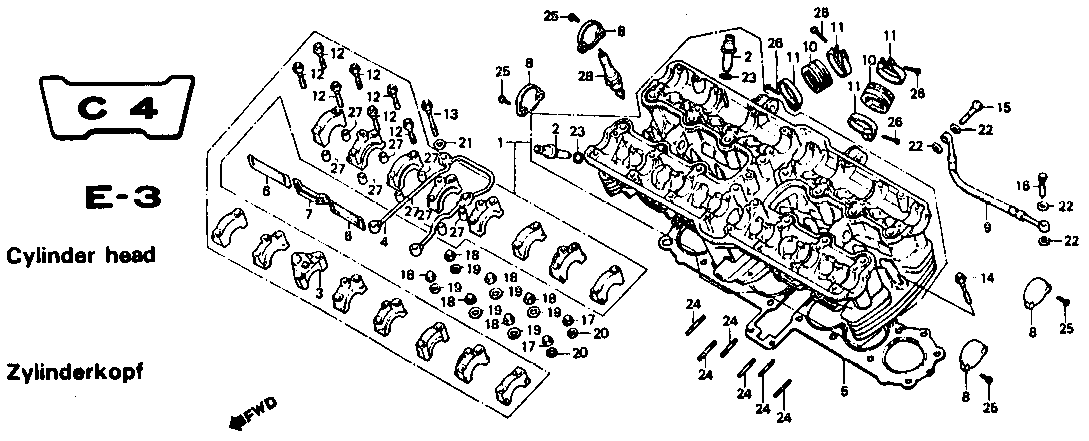

| Abb. - Nr. | Teile - Nr. | Beschreibung | CBX B | CBX C | Area codeCBX C |
| 1 | 12010-MA2-000 | Zylinderkopfeinheit | 1 | ||
| 12010-MA2-770 | Zylinderkopfeinheit | 1 | |||
| 2 | 12204-422-305 | Ventilführung | 24 | 24 | |
| 3 | 12216-422-305 | Nockenwellenhalter NLA | 1 | 1 | |
| 4 | 12230-422-000 | Ölrohr | 1 | 1 | |
| 5 | 12251-422-010 | Zylinderkopfdichtung | 1 | 1 | |
| 6 | 12261-422-000 | Platte A Ölsenke | 4 | 4 | |
| 7 | 12262-422-000 | Platte B Ölsenke | 2 | 2 | |
| 8 | 12315-422-010 | Deckel, Zylinderkopf | 4 | 4 | |
| 9 | 15520-422-003 | Ölrohr, komplett | 1 | 1 | |
| 10 | 16211-MA2-000 | Vergaserdichtrohr | 6 | 6 | |
| 11 | 16219-422-000 | Schelle Vergaser | 12 | 12 | |
| 12 | 90001-422-000 | Flanschschraube, 6 x 48 | 28 | 28 | |
| 13 | 90002-422-000 | Flanschschraube, 6 x 62 | 2 | 2 | |
| 14 | 90012-422-000 | Schraube 8x50 | 2 | 2 | |
| 15 | 90025-422-000 | Schraube, Öl | 1 | 1 | |
| 16 | 90045-422-000 | Schraube, kompl. Öl | 1 | 1 | |
| 17 | 90203-422-000 | Flanschmutter 8mm | 4 | 4 | |
| 18 | 90204-422-000 | Flanschmutter 10mm | 12 | 12 | |
| 19 | 90403-438-003 | Dichtring 10mm | 12 | 12 | |
| 20 | 90441-469-000 | Dichtring 8mm | 4 | 4 | |
| 21 | 90442-035-000 | Dichtring 6mm | 2 | 2 | |
| 22 | 90545-300-000 | Dichtring Ölschraube | 4 | 4 | |
| 23 | 91301-200-000 | O Ring 10x1.6 | 24 | 24 | |
| 24 | 92700-06055-0E | Schraube, Stutzen 6x50 | 12 | 12 | |
| 25 | 93500-05012-08 | Schraube 5x12 Kreuzschlitz | 8 | 8 | |
| 26 | 93500-05020-0G | Schraube 5x20 | 12 | 12 | |
| 27 | 94301-08140 | Passstück 8x14 | 32 | 32 | |
| 28 | 98069-38716 | Zündkerze DR8ES-L | 6 | 6 | CM, ED, E, F, G, SA |
| 98069-57716 | Zündkerze DR7ES | 6 | 6 | CM, ED, E, F, G, SA | |
| 98069-57717 | Zündkerze D7EA | 6 | 6 | DK, DM, U | |
| 98069-57726 | Zündkerze X22ESR-U | 6 | 6 | CM, ED, E, F, G, SA | |
| 98069-57727 | Zündkerze X22ES-U | 6 | 6 | DK, DM, U | |
| 98069-58716 | Zündkerze DR8ES | 6 | 6 | CM, ED, E, F, G, SA | |
| 98069-58717 | Zündkerze D8EA | 6 | 6 | DK, DM, U | |
| 98069-58726 | Zündkerze X24ESR-U | 6 | 6 | CM, ED, E, F, G, SA | |
| 98069-58727 | Zündkerze X24ES-U | 6 | 6 | DK, DM, U | |
| 98069-59717 | Zündkerze D9EA | 6 | 6 | DK, DM, U | |
| 98069-59726 | Zündkerze X27ESR-U | 6 | 6 | CM, ED, E, F, G, SA | |
| 98069-59727 | Zündkerze X27ES-U | 6 | 6 | DK, DM, U |
